Install a ring end connector on the end of the wire and place it on one pole of the switch. The circuit used should have voltage to it only when the ignition is ON. STEP 5: Route an 18 gauge or large wire from a 10 amp fuse circuit on the fusebox to the switch. The final assembly should appear as in figure 1. The switch should close just before wide open throttle in order to activate the kickdown solenoid properly. Tighten the scew on the wire clamp capturing the wire into the fitting. Install the actuator wire into the wire clamp.Open the throttle to about 90% throttle. Hook the other spring loop into the switch actuator.
STEP 4: Slip the wire clamp through one loop of the spring. Install the actuator wire through the plastic swivel as shown in figure 1. Install the plastic swivel fitting onto the throttle lever fitting. The throttle lever must pull the actuator out of the switch to initate the downshift. Install the throttle lever fitting on the lower half of the throttle lever. If the old throttle lever fitting cannot be used, remove the stock cable fitting from the throttle lever or choose another hole which is large enough to accept the supplied throttle lever fitting. STEP 3: See if plastic swivel fitting fits the old throttle lever fitting. Place the second large washer, then the large star washer over the switch threads.Thread the jam nut on the threads and tighten firmly. Place the switch through the cable mounting bracket with the actuator in line with the throttle lever.
Place one small washer over switch threads, washer will center the switch in the cable bracket.

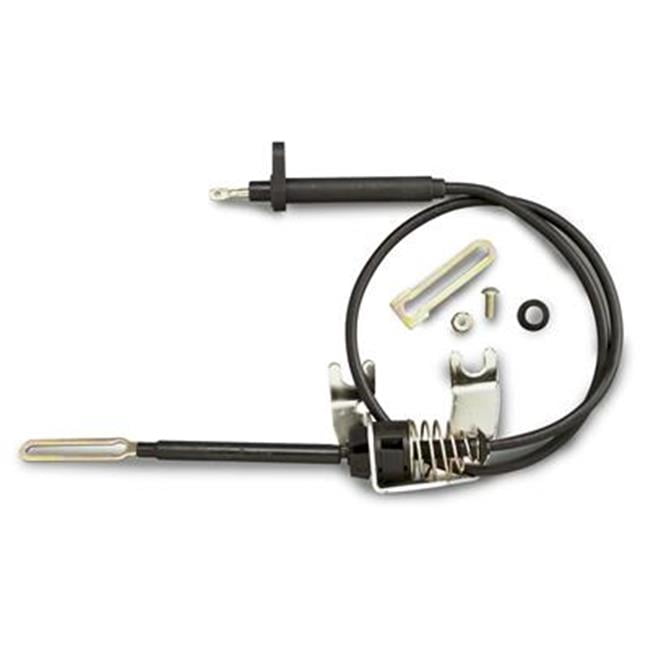

Place one large washer over switch threads. The stock cable will no longer be required. Remove the cable end from the carburetor. Do not remove or alter the position of the bracket. STEP 1: Remove the stock transmission cable from the cable bracket. These transmissions employ a cable operated kickdown mechanism, as opposed to the electric kickdown feature of Vehicles that were originally equipped with TH-700-R4, TH-200, TH-200-4R, TH-350, or TH-350C transmissions. The B&M TH400 Kickdown Switch Kit is designed to accommodate the installation of the TH-400 transmission into
